2.5T large drum straightening short material straightening machine
$ 0.00 $0.00
Quantity
Add To Cart Buy It Now
  • Detail

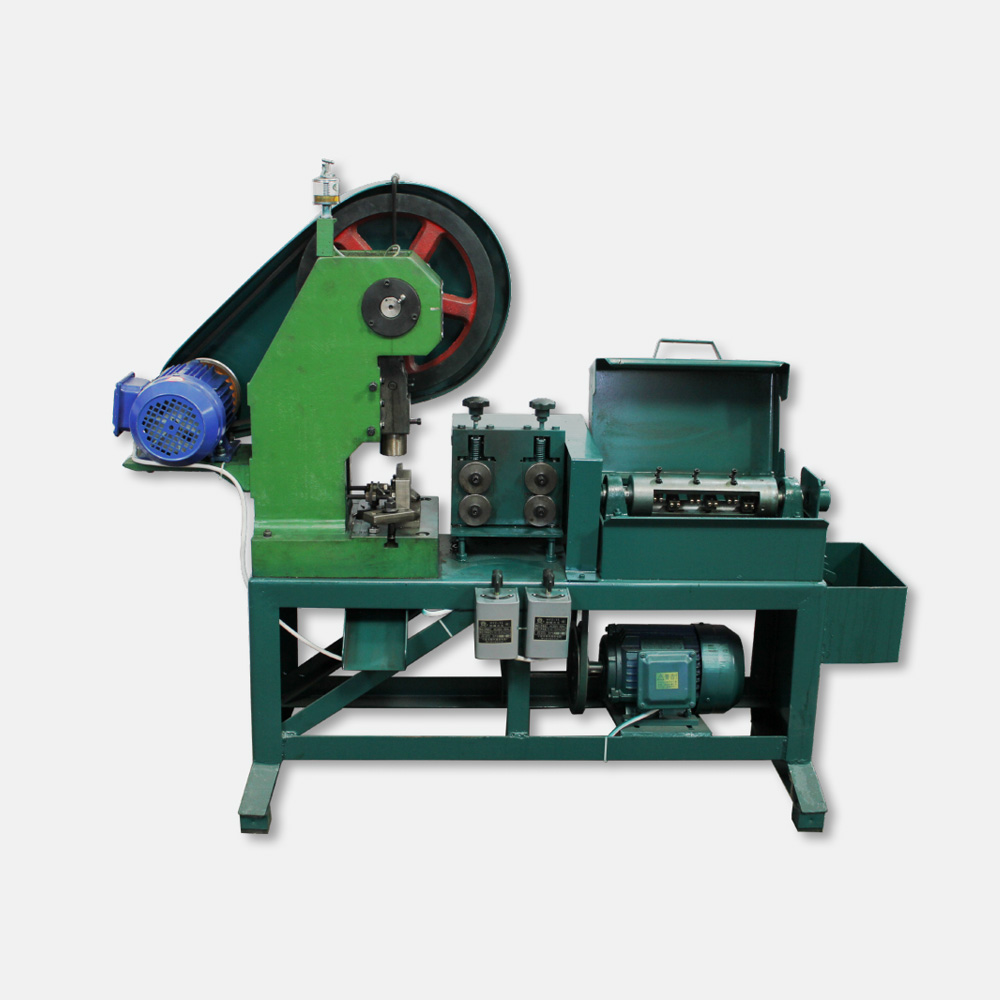

SD025-B 2.5T large drum straightening short material straightening machine
Model Equipment name Straightening parameters Cut-off parameter Mechanical parameters
Wire diameter range Feeding speed Accuracy Impact force Rated power Equipment size Equipment weight
SD025-B 2.5T large drum straightening short material straightening machine Φ3-Φ5 18/per minute ≤0.03mm 2.5T 0.75kw+1.5kw 150*50*120CM 300kg


Description：

2.5T large drum straightening short material straightening machine, suitable for medium Ф3-Ф5 metal materials. This machine adopts the drum straightening technology, which can precisely straighten the coiled copper, iron, stainless steel or other metal round bar materials and automatically cut and form them. The straightening specifications can be configured with various corresponding molds according to specific requirements.


Characteristics：

① Fast straightening speed and high efficiency

② The cut surface is smooth

③ The length error is very small

④ High straightening accuracy

⑤ Convenient to operate

⑥ Save labor
