Hydraulic 50-type flinging and straightening machine
$ 0.00 $0.00
Quantity
Add To Cart Buy It Now
  • Detail

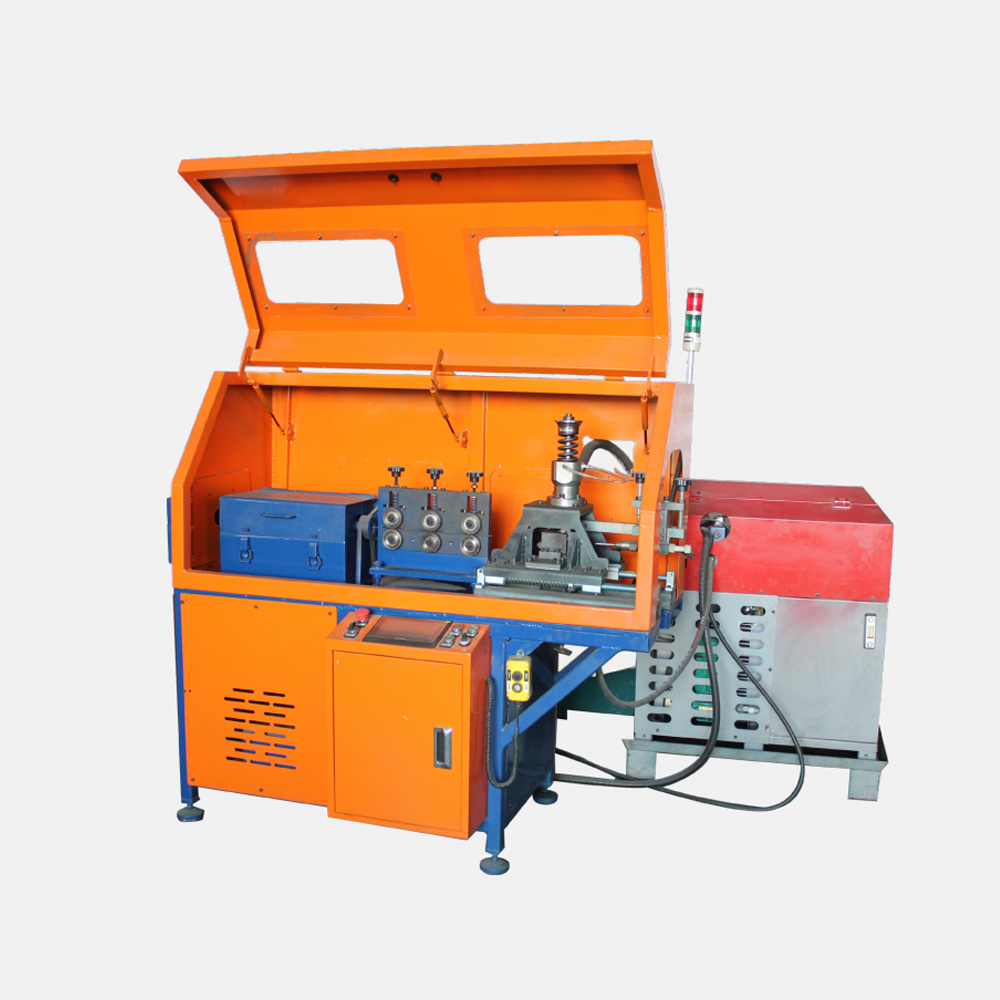

YY-ST050 Hydraulic 50-type flinging and straightening machine
Model Equipment name Straightening parameters Cut-off parameter
 Mechanical parameters
Wire diameter range Feeding speed Accuracy Speed Impact force Rated power Equipment size Equipment weight
YY-ST050 Hydraulic 50-type flinging and straightening machine Φ3-Φ6 22/per minute ≤0.10mm 20-50mm, 450 pieces per minute 2.5T 3kw+2.2kw 150*100*160CM 300kg


Description：

Hydraulic 50-type flinging and straightening machine, suitable for medium 3-Ф6 metal materials. This machine adopts high-speed hydraulic cutting and roller straightening, capable of straightening round materials. The bar stock or other special-shaped metal materials are precisely straightened and automatically cut and formed. The straightening specifications can be configured with various corresponding molds according to specific requirements.


Characteristics：

① Fast straightening speed and high efficiency

② The cut surface is smooth

③ The length error is very small

④ High straightening accuracy

⑤ Convenient to operate

⑥ Save labor
