2.5T straight short material small straightening machine
$ 0.00 $0.00
Quantity
Add To Cart Buy It Now
  • Detail

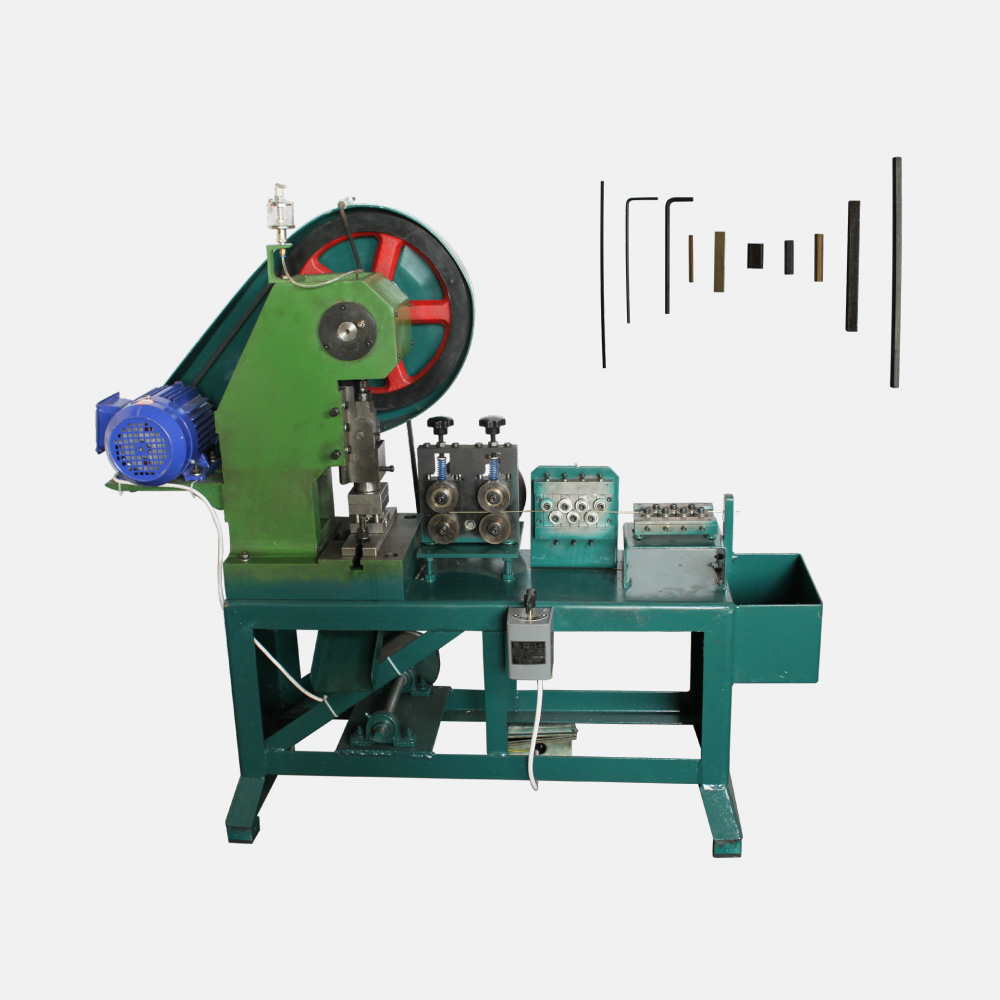

YD025-A 2.5T straight short material small straightening machine
Model Equipment name Straightening parameters Cut-off parameter Mechanical parameters
Wire diameter range Feeding speed Accuracy Impact force Rated power Equipment size Equipment weight
YD025-A 2.5T straight short material small straightening machine Φ1-Φ3

18/per minute

 ≤0.03mm 2.5T 0.75kw+0.75kw 130*50*120CM 150kg

Description：

2.5T straight short material small straightening machine, suitable for metal materials with diameters ranging from Φ1 to Ф3. This machine adopts extrusion straightening technology, which can precisely straighten round materials, square materials, hexagonal materials or other irregular metal materials and automatically cut them into shape. The straightening specifications can be configured with various corresponding molds according to specific requirements.


Characteristics：

① Fast straightening speed and high efficiency

② The cut surface is smooth

③ The length error is very small

④ High straightening accuracy

⑤ Convenient to operate

⑥ Save labor
