6.3T straightening long material straightening machine - Enlarged
$ 0.00 $0.00
Quantity
Add To Cart Buy It Now
  • Detail

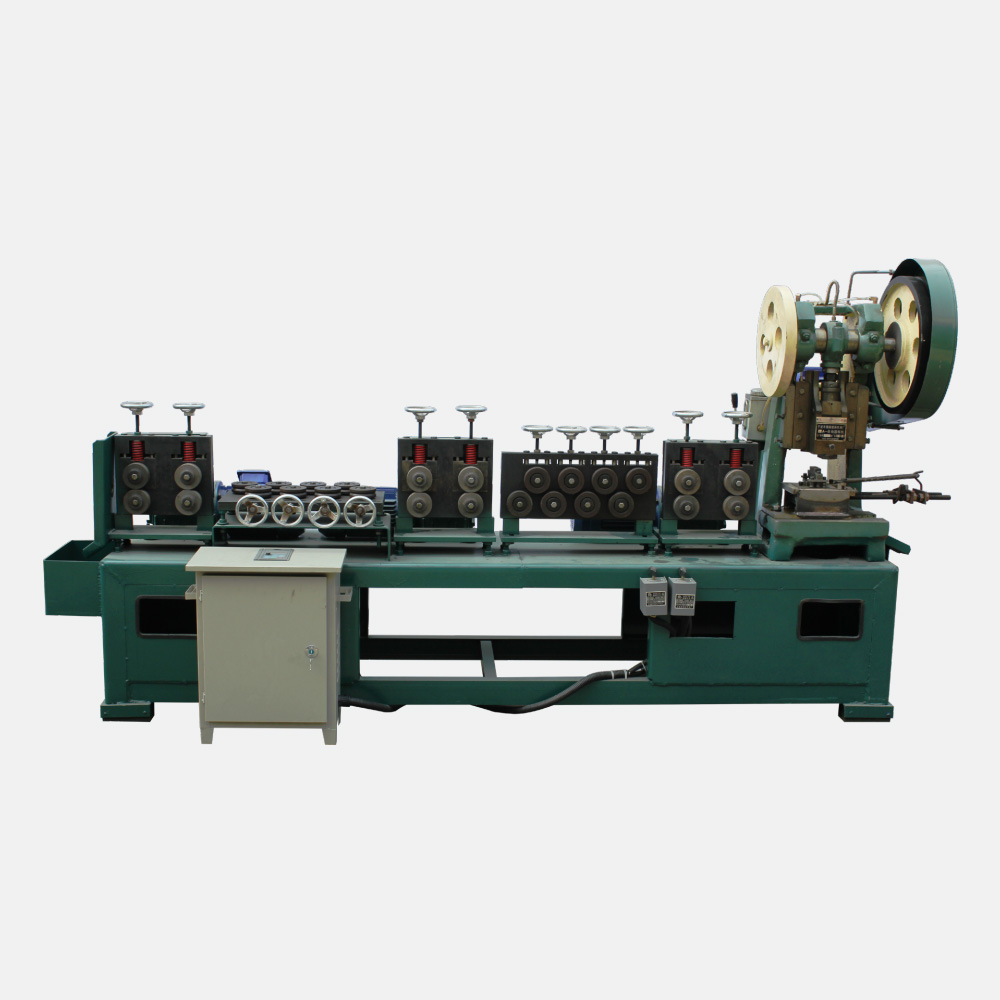

YC063C-D 6.3T straightening long material straightening machine - Enlarged
Model Equipment name Straightening parameters Cut-off parameter Mechanical parameters
Wire diameter range Feeding speed Accuracy Impact force Rated power Equipment size Equipment weight
YC063C-D 6.3T straightening long material straightening machine - Enlarged Φ6-Φ10

18/per minute

 ≤0.03mm 6.3T 1.1kw+7kw 270*90*150CM 800kg


Description：

6.3T straightening long material straightening machine - Enlarged, suitable for metal materials with diameters ranging from Φ6 to Ф10. This machine adopts extrusion straightening technology, which can precisely straighten round, square, hexagonal or other irregular metal materials and automatically cut them into shape. The straightening specifications can be configured with various corresponding molds according to specific requirements.


Characteristics：

① Fast straightening speed and high efficiency

② The cut surface is smooth

③ The length error is very small

④ High straightening accuracy

⑤ Convenient to operate

⑥ Save labor
