 | Servo straightening 10T press automatic straightening machine
$
0.00
$0.00
Quantity
Add To Cart
Buy It Now
|
- Detail
| SF-YC100 | Servo straightening 10T press automatic straightening machine | |||||||
| Model | Equipment name | Straightening parameters | Cut-off parameter | Mechanical parameters | ||||
| Wire diameter range | Feeding speed | Accuracy | Impact force | Rated power | Equipment size | Equipment weight | ||
| SF-YC100 | Servo straightening 10T press automatic straightening machine | Φ6-Φ10 |
35/per minute |
≤0.25mm | 10T | 1.5kw+3.0kw servo motor | 250x80x180cm | 1000kg |
Description：

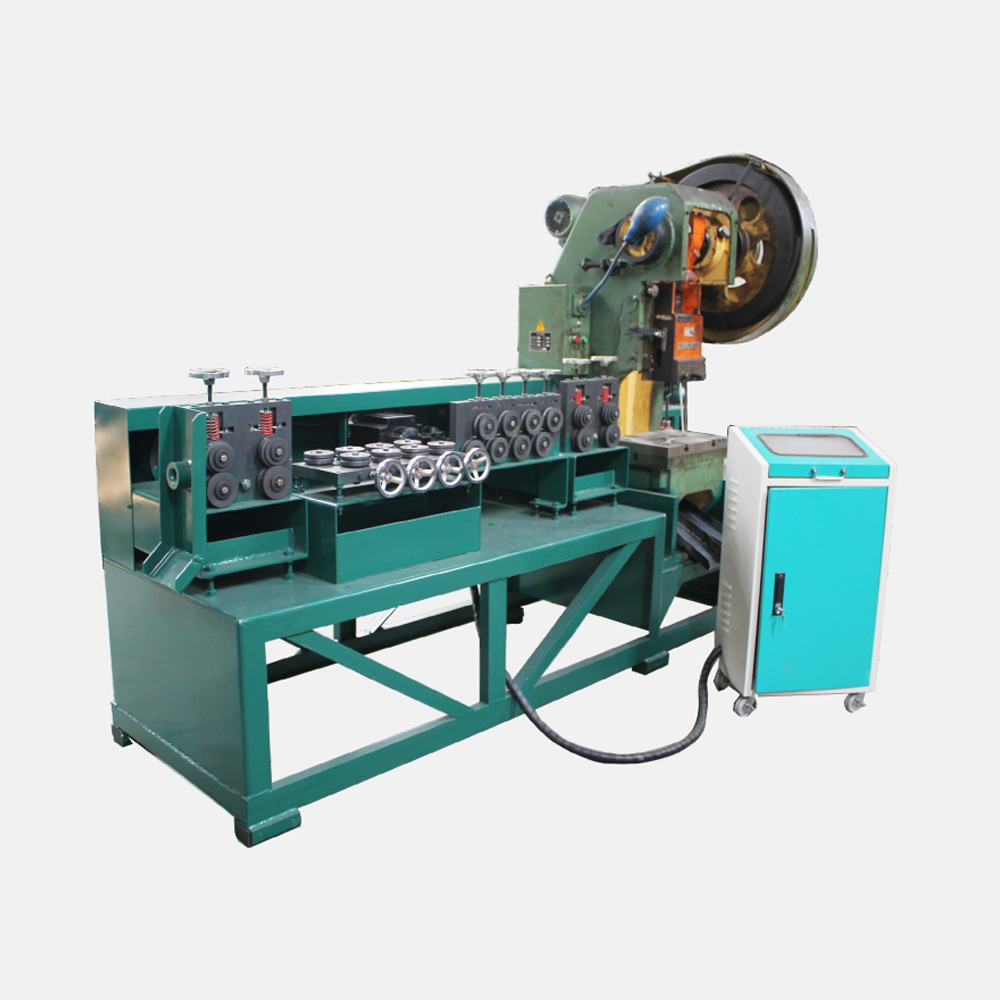

Servo straightening 10T press automatic straightening machine, suitable for metal materials ranging from Ф6 to Ф10. This machine adopts numerical control technology, with a fixed-length motor and straightening rollers. It can precisely straighten round, square, hexagonal or other special-shaped metal materials and automatically cut them into shape. The blanking specifications can be configured with various corresponding molds according to specific requirements.
Characteristics：
① Fast straightening speed and high efficiency
② The cut surface is smooth
③ The length error is very small
④ High straightening accuracy
⑤ Convenient to operate
⑥ Save labor
