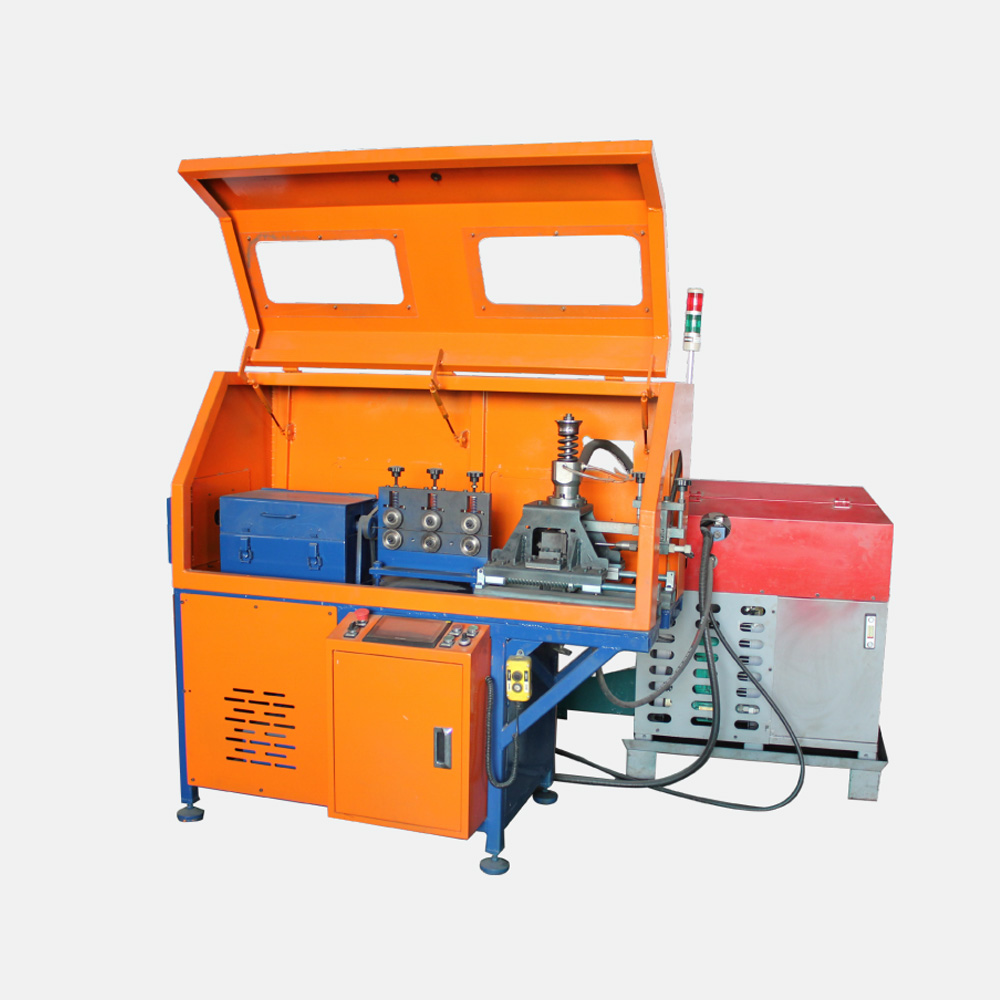

| YY-ST050 | Hydraulic 50-type flinging and straightening machine | ||||||||
| Model | Equipment name | Straightening parameters | Cut-off parameter | Mechanical parameters | |||||
| Wire diameter range | Feeding speed | Accuracy | Speed | Impact force | Rated power | Equipment size | Equipment weight | ||
| YY-ST050 | Hydraulic 50-type flinging and straightening machine | Φ3-Φ6 | 22/per minute | ≤0.10mm | 20-50mm, 450 pieces per minute | 2.5T | 3kw+2.2kw | 150*100*160CM | 300kg |
Description：
Hydraulic 50-type flinging and straightening machine, suitable for medium 3-Ф6 metal materials. This machine adopts high-speed hydraulic cutting and roller straightening, capable of straightening round materials. The bar stock or other special-shaped metal materials are precisely straightened and automatically cut and formed. The straightening specifications can be configured with various corresponding molds according to specific requirements.
Characteristics：
① Fast straightening speed and high efficiency
② The cut surface is smooth
③ The length error is very small
④ High straightening accuracy
⑤ Convenient to operate
⑥ Save labor
