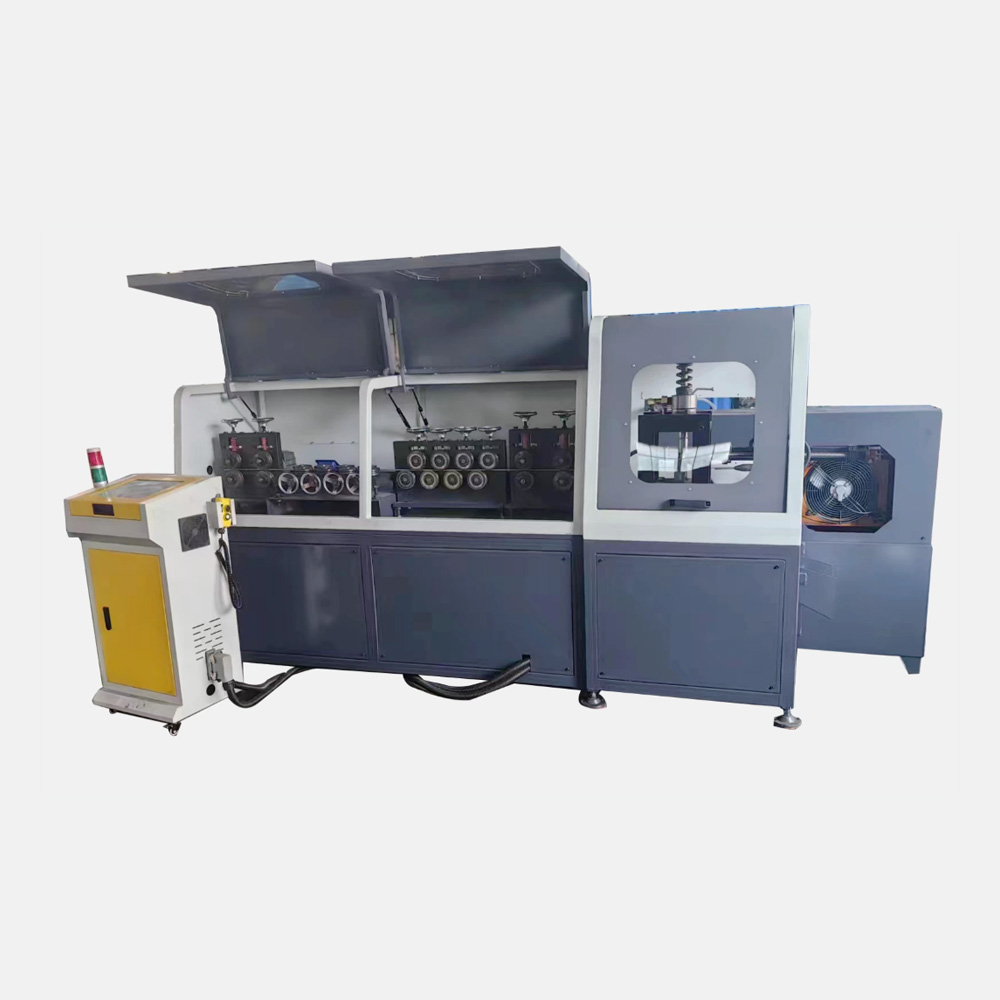

 | 80-cylinder hydraulic straightening machine
$
0.00
$0.00
Quantity
Add To Cart
Buy It Now
|
- Detail
| 80GYT | 80-cylinder hydraulic straightening machine | ||||||||
| Model | Equipment name | Straightening parameters | Cut-off parameter |
Mechanical parameters | |||||
| Wire diameter range | Feeding speed | Accuracy | Speed | Cylinder diameter | Rated power | Equipment size | Equipment weight | ||
| 80GYT | 80-cylinder hydraulic straightening machine | Φ6-Φ10 |
22/per minute |
≤0.10mm | 20-50mm,450 pieces per minute | 80 | 5.5+3kw | 340x110x150cm | 1000kg |
Description：
80-cylinder hydraulic straightening machine, suitable for metal materials with diameters ranging from Φ6 to Ф10. This machine adopts high-speed hydraulic cutting and roller straightening, capable of precisely straightening and automatically cutting and forming round materials, bar materials or other irregular metal materials in the form of discs. The straightening specifications can be configured with various corresponding molds according to specific requirements.
Characteristics：
① Fast straightening speed and high efficiency
② The cut surface is smooth
③ The length error is very small
④ High straightening accuracy
⑤ Convenient to operate
⑥ Save labor
