Hydraulic Type 63 straightening and pressing machine
$ 0.00 $0.00
Quantity
Add To Cart Buy It Now
  • Detail

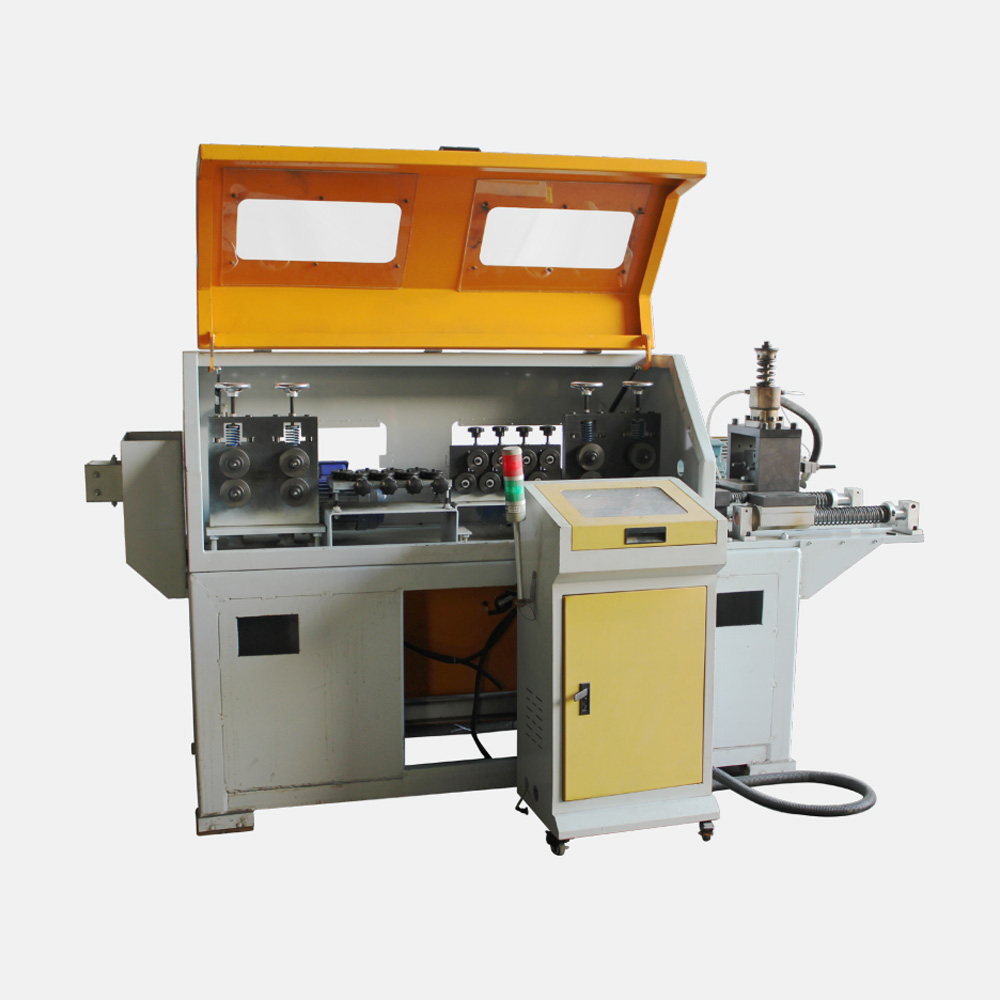

YY-YT063 Hydraulic Type 63 straightening and pressing machine
Model Equipment name Straightening parameters Cut-off parameter
 Mechanical parameters
Wire diameter range Feeding speed Accuracy Speed Cut off the pressure Rated power Equipment size Equipment weight
YY-YT063 Hydraulic Type 63 straightening and pressing machine Φ4-Φ8

22/per minute

 ≤0.10mm 20-50mm,450 pieces per minute 4.5T 4kw 240*80*130CM 600kg


Description：

Hydraulic type 63 straightening and flattening machine, suitable for medium 4-Ф8 metal materials. This machine adopts high-speed hydraulic cutting and roller straightening, capable of precisely straightening and automatically cutting and forming round materials, bar materials or other irregular metal materials in the form of discs. The straightening specifications can be configured with various corresponding molds according to specific requirements.


Characteristics：

① Fast straightening speed and high efficiency

② The cut surface is smooth

③ The length error is very small

④ High straightening accuracy

⑤ Convenient to operate

⑥ Save labor
